Komatsu 845

The profit-driving forwarder with low enviromental impact

Komatsu 845

The Komatsu 845 is built to provide the highest possible productivity in thinning and lighter clear cutting. At the same time, it's the forwarder that delivers the best conceivable operating economy but without causing undue impact on the environmental. Here are the 845's most significant strength:

Features

Flexible load area

Flexible load area and new FlexBunk bunks with mechanical widening and hydraulic stake height adjustment enable a 12-ton load capacity regardless of timber lenght.

Minimal impact on the environment

The 845's superior manoeuvrability, acessibility and the minimal impact on the environment, as well as its low ground pressure and high clearance, are all due to the machine's low weight, slim exterior dimensions and 26.5 inch wheels.

Intelligent hydrostatic system

Computerized system (optimizes hydrostatic characteristics to: machine load, ground conditions, slope, obstacles, power and torque output from diesel engine). Enables good diesel engine utilization on low revs with high tractive force and good fuel economy. Reliability – Overspeed protection for hydrostatic motor.

Specifications

845

Overview

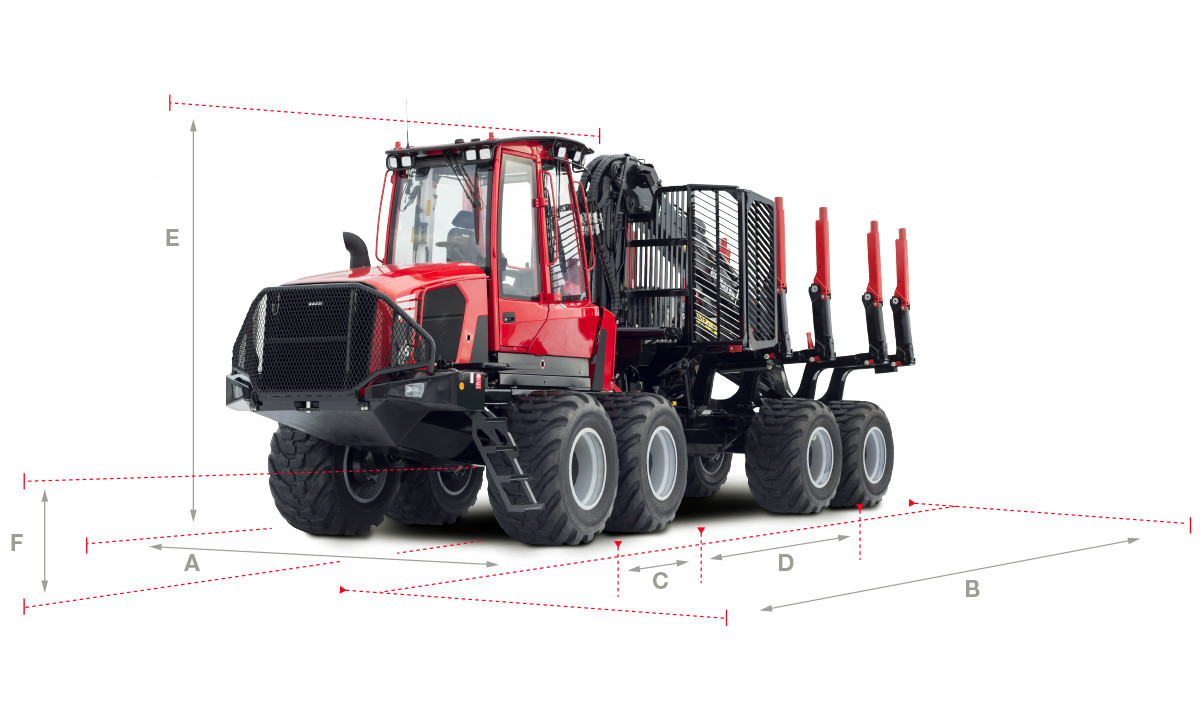

Technical dimensions of Komatsu 845
Approximate weight

16,600 kg (36,597 lb)

Stroke volume

4,9 l (1,1 gal)

Power

140 kW DIN (188 HP) at 1,900 RPM

Torque

830 Nm at 1,200 - 1,500 rpm

Fuel Tank

124 l (27,3 gal)

Gross load

12,000 kg (26,455 lb)

Bunk area

4,13 - 5,45 m2, hydraulic shifting

Loader

Komatsu 105F

Reach

7.8 (25’ 7”) / 9.5 (31' 2'') /10 m (32' 9'')

Gross lifting torque

103 kNm (75,969 lb-ft)

Gross slewing torque

28.7 kNm (21,170 lb-ft)

Rotator

G121 and slewing dampened link.

Grapple

Komatsu G28/G25

Flow

280 l/min (62 gal/min) at 2,000 RPM

Max working pressure

24,5 MPa (245 bar)

Voltage

24 V

Battery capacity

2 x 140 Ah

Generator

2 x 100A

Driving Speed

0-8/24,5 km/h (0-5/15,2 mph) (terrain/road)

Tranctive Force

16,927 kp (166 kN)

General information

Standard and extra equipment are market-dependent and vary between countries. The specification describes possible equipment, not that which is standard or optional. Stated weights are based on standard equipment. Specifications and designs are subject to change without notice.
