Komatsu C144

Uncompromising dependability and profitable

Komatsu C144

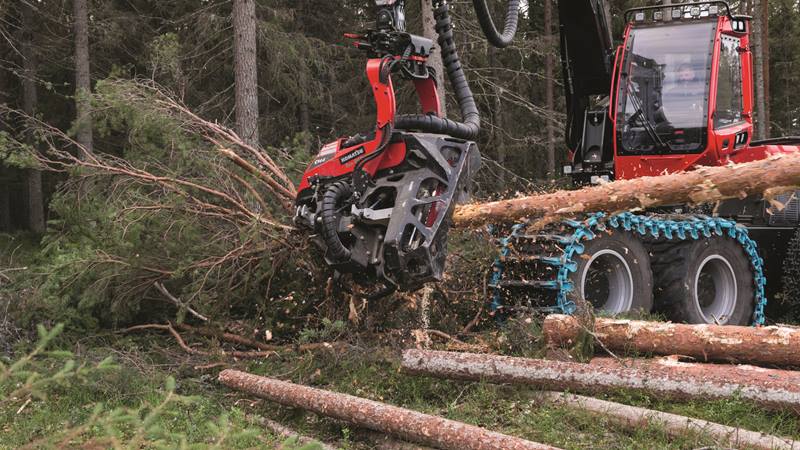

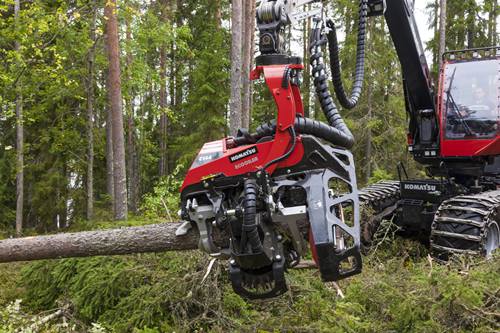

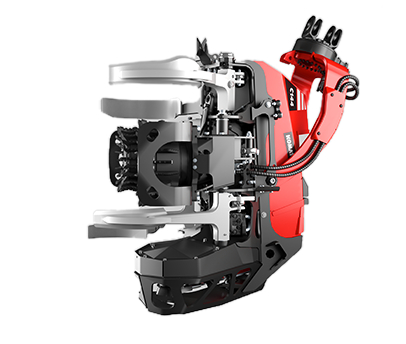

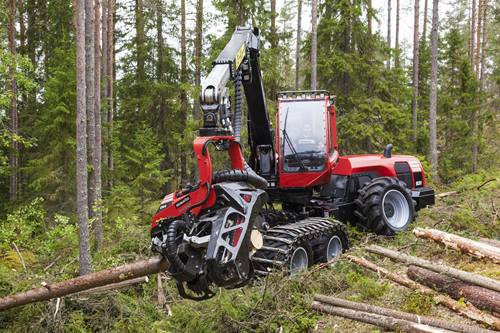

The harvesting head that never lets you down - not even in the most demanding and rough harvesting enviroments. This is our newly developed Komatsu C144

Download brochure

Weight (dry weight)

From 1 407 kg (3,102 lb)

Fell/cut diam. max

750 mm

Head opening, max

650 mm (25.6")

Delimbing diameter, tip to tip

530 mm (20.9")

Features

Never lets you down

The head that never lets you down – not even in the most demanding and rough harvesting environments. That's the Komatsu C144. This refusal to compromise is seen not the least in the 4WD feed. The system's extra roller in the feed line, which complements the body roller, is truly unique and produces significantly higher feed force.

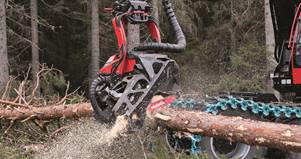

Upgraded cutting unit, Constant Cut

Constant Cut, our intelligent saw motor control, ensures that the head has a constant and efficient saw motor speed throughout the complete cutting cycle. This, in turn, ensures efficient cutting and limits problems with cutting cracks.

The Constant Cut cutting unit is upgraded for the Komatsu C144, featuring several improvements for increased reliability.

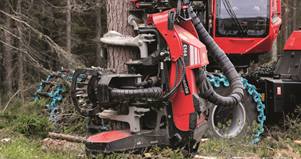

Service friendly

Safe and simple service with centralised lubrication points

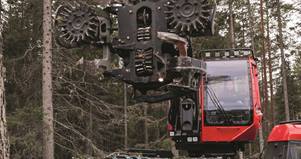

Head-mounted working lights

You can also opt for head-mounted working lights, which help increase productivity and reduce the risk of downtime.

Specifications

C144

Overview

Komatsu C144
Max widht

1 823 mm (71.8”)

Height incl. rotator

1810 mm (71.2”)

Height to vertical knife

1 579 mm (62.1”)

Roller opening, max

750 mm (29,5”)

Opening front knives

650 mm (25.6")

Opening rear knives

800 mm (31.5")

Weight

Dry weight, incl rotator, from 1 407 kg (3,102 lb)

Feed speed

0-5 m/s (0-16.4 ft/s) / 6,5 m/s (21.3 ft/s)

Gross feed force

Feed roller motor dependent. 23,8 kN (5,350 lb) / 29,6 kN (6,654 lb)

Feed wheel type

Steel rollers

Delimbing knives, number

5

Delimbing knives, opening

530 mm (20.9”)

Bar

82,5 cm (32.5”) / 90 cm (35.4”)

Saw motor

19 cm3/rev (1.16 cu in/rev)

Fell/Cut diam. theor. max

750 mm (29.5")

Max hydraulic flow

Feed roller motor dependent. 320 l/min (84.5 gal/min), 330 l/min (87.2 gal/min)

Max hydraulic pressure

28 MPa (4061,1 psi)

General information

Standard and extra equipment are market-dependent and vary between countries. The specification describes possible equipment, not that which is standard or optional. Stated weights are based on standard equipment. Specifications and designs are subject to change without notice.
