Komatsu S92
New, uniquely productive and dependable
Komatsu S92

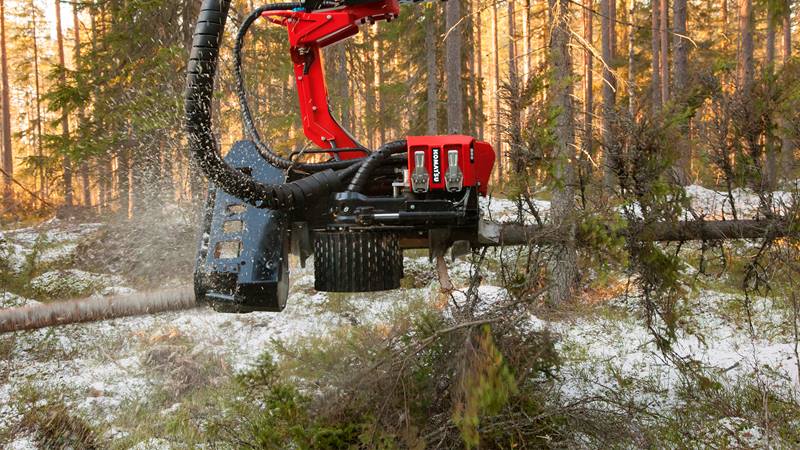

A new allround head for maximum high productivity and dependability, even in the most difficult forests. These are undoubtedly the clearest benefits of our new two-weel drive head.
Weight (dry weight)
From 951 kg (2,097 lb)
Height (incl. rotator)
1935 mm (76,2”)
Fell/cut diam. theor. max
630 mm (24,8”)
Feed speed
0-5 m/s (0-16,4 ft/s)
Specifications
S92
Overview

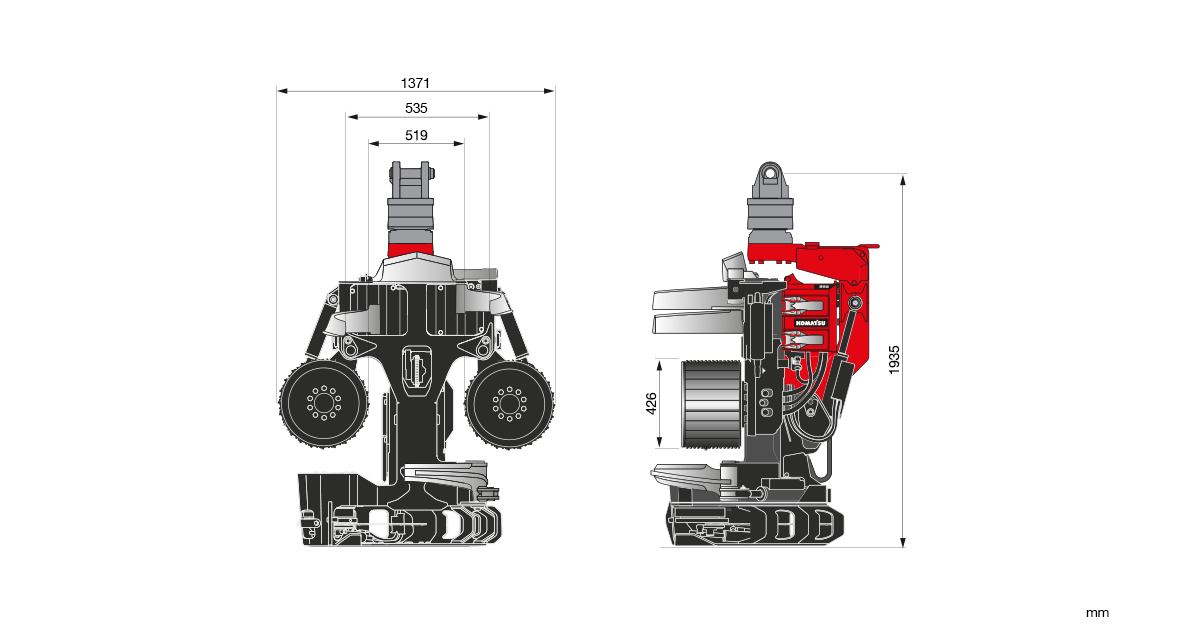

Dimensions
Max widht
1371 mm (54”)
Height incl. rotator
1935 mm (76,2”)
Opening knives
upper: 535 mm (21,1”)
Roller opening, max
519 mm (20,4”)
Roller diameter
426 mm (16,8'')
Specifications
Weight
Dry weight, incl rotator, from 951 kg (2,097 lb)
Feed speed
0-5 m/s (0-16,4 ft/s)
Gross feed force
26,1 kN
Feed wheel type
Steel rollers
Delimbing knives, number
4
Delimbing knives, opening
373 mm (14,7”)
Bar
75 cm (29,5'')
Saw motor
19 cm3/rev (1.16 cu in/rev)
Fell/Cut diam. theor. max
630 mm (24,8”)
Max hydraulic flow
280 l/min (61,6 gal/min)
Max hydraulic pressure
28 MPa
Notes
General information
Standard and extra equipment are market-dependent and vary between countries. The specification describes possible equipment, not that which is standard or optional. Stated weights are based on standard equipment. Specifications and designs are subject to change without notice.
