Komatsu 898 forwarder

898

Komatsu 898

A 25-tonne forwarder, specialised on plantation forestry as well as final felling operations. The powerful engine, robust transmission and large load space, with a wide range of customisation options, make it a cost-efficient and productive forwarder in the largest segment.

Gross load

25 000 kg

Power

250 kW at 1 850 rpm

Torque

1 450 Nm at 1 500 rpm

Tractive force

8WD: 345 kN 6WD: 262 kN

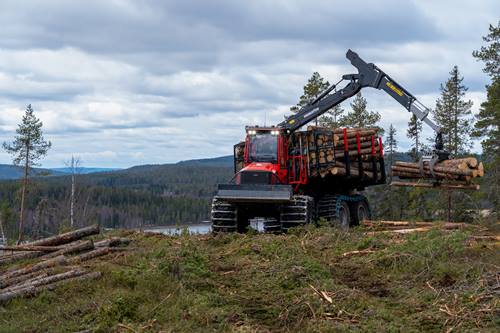

A machine for you

-25-tonne load capacity
-A powerful 250 kW engine
-165F crane in 7.5 / 8.5 / 10 reach - possibility to choose the stronger 205F crane as an option
-8WD has dual hydrostatic motors corresponding to the XT transmission option
-Customise your load space with telescopic bunks (with or without optional hydraulic stakes)
-8WD: Front wheels 28.5“, rear wheels 30,5“. 6WD: Front wheels 34“, rear wheels 30,5"
-Articulated, low bunks as option for plantation forestry
-Optional extra-long rear frame for 7.2 m long timber
-Choose between different grapple options to find the one that suits you

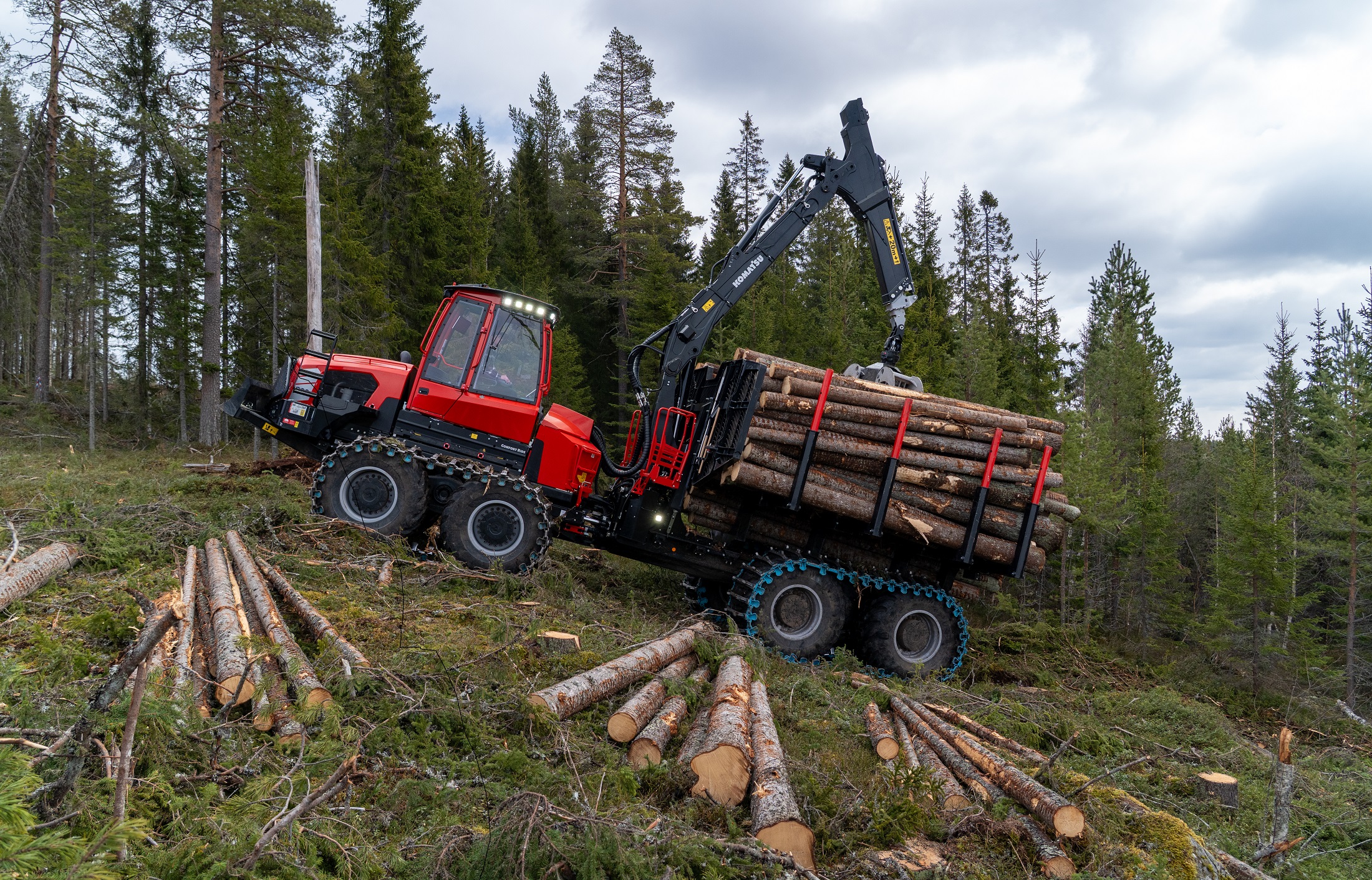

Strength and stability

Our forwarders for final felling are built to deliver high productivity in the forest. The stable design and high ground clearance allow the forwarder to easily navigate difficult terrain. With their powerful engine, which combines high torque with low fuel consumption, they can also handle tough conditions without compromising on efficiency.

Komatsu 898 8WD is equipped with the new generation hydrostatic transmission with a larger hydrostatic pump and dual hydraulic motors. This provides similar characteristics to the 895 with XT transmission, but with even higher traction force - as much as 345 kN. The machine also offers a spacious load area and a strong crane, making it the perfect choice for demanding jobs.

A robust load space with high capacity

Komatsu forwarders have load spaces characterised by flexibility and the possibility to adapt to your needs. The robust design is fully customised for final felling and plantation forestry.

The load space consists of a robust gate with adjustable height and durable bunks with telescopic width extension. The entire gate can be raised and lowered hydraulically, and the foldable gate wideners can be locked in a folded or unfolded position. The bunks can be equipped with hydraulic stakes which provides more efficient crane operation during loading and unloading - it also contributes to reduced fuel consumption.

Our strongest crane yet

The crane is one of the key components of a productive workday. With the 205F crane option, you get our strongest crane yet with a lifting torque of 205 kNm and a slewing torque of 51.9 kNm.

It is developed with a focus on increased productivity in final cutting and plantation forestry. Combine it with our largest grapple model, G88H, for an even more productive workday. The grapple has a tip-to-tip area of 0.55 m2 and a newly designed, powerful rotator to ensure a smooth transition of the logs from the forest to the roadside.

Handle timber like a pro

Komatsu grapples are designed to deliver high productivity in tough environments. With a large opening and good retraction properties, the grapples make it easy to gather, straighten and grip timber quickly and efficiently.

The 11 different models, including specialised variants for bioenergy and heavy-duty applications, ensure there is a grapple for every need. Their robust design and high durability make them a reliable tool, helping you to work more efficiently and profitably.

Some of our forwarder options

Komatsu Comfort Ride

A forwarder operator spends many hours a day in the cab, making a pleasant and comfortable work environment extremely important. Komatsu Comfort Ride efficiently dampens jolts and vibrations, ensuring an ergonomic work environment. This in turn contributes to higher productivity and better profitability.

The new generation of Komatsu Comfort Ride comes with comfort-enhancing features like adjustable sideways firmness and automatic side levelling at standstill and at low speed. The elevated unloading mode now also works at low speed, to make it smoother to reposition the forwarder at the landing. Great news for all forwarder operators!

Download brochure

Smart Crane

Since such a large share of a forwarder operator's working day involves crane operation, increased efficiency offers great potential. Smart Crane provides the operator with advantages such as simpler crane operation, less physical strain and higher productivity. Advantages that benefit both profitability and the operator's wellbeing. Everything to make it as easy as possible for the operator to focus on what is truly important – moving timber to the roadside.

Download brochure

Smart Forestry

Smart Forestry gives you access to a collection of digital services that help make the workplace safe, smart, productive and sustainable - whether you have one or a hundred forest machines. You can keep track of your machines, collaborate with colleagues, and make wise decisions based on facts.

Smart Forestry consists of three different applications, making it easy for you to find the one that suits you and your business.

More About Smart Forestry

Specifications

898

Overview

Dimensions

A. Width

With 780/55x30.5" tyres: 3160 mm

B. Length, total

11 000 mm (with shortest rear frame)

C. Length, front axle to middle joint

2 150 mm

D. Length, middle joint to rear axle

3 900 mm

E Transport height with hoses and tyre compression

4 030 mm

E. Transport height

4 030 mm

F. Ground clearance, at steering joint

790 mm

Weight

Approximate weight

25 000 kg

Engine

General information

6-cylinder diesel engine with turbo and intercooler. EU Stage V, Tier 4F and MAR-1.

Stroke volume

7.5 l

Power

Stage V, Tier 4F and MAR-1: 250 kW

Torque

EU Stage V, Tier 4F and MAR-1: 1 450 Nm at 1 500 rpm.

Fuel Tank

245 / 505 l

Bunk area

Gross load

25 000 kg

Bunk area

6.9-8.6 m2

Crane and grapple

Crane

Komatsu 165F/205F

Reach

7.5 / 8.5 / 10 m

Gross lifting torque

165 / 205 kNm

Gross slewing torque

43.4 / 51.9 kNm

Rotator

GT151 / GX / GT181 (10 m)

Grapple

We offer a wide selection of grapples, please contact your sales representative for more information.

Hydraulic system

Flow

410 l/min at 1 950rpm

Max working pressure

28 MPa

Electrical system

Voltage

24 V

Battery capacity

2 x 180 Ah

Generator

2 x 100 A

Transmission

Driving Speed

0 - approx. 25 km/h

Tranctive Force

8WD: 345 kN 6WD: 262 kN

Notes

General information

The specifications describe possible equipment, not which equipment is standard or optional. Standard and optional equipment varies between countries. Your sales representative has an up-to-date list of what is included. Weights are based on the equipment specified in the basic specification. Specifications and designs are subject to alteration without prior notice.
