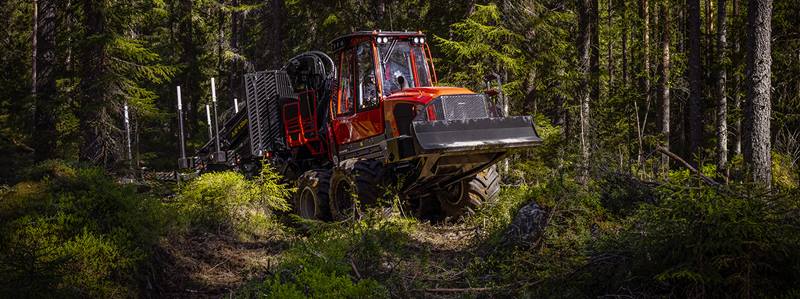

Komatsu 875-2
Versatile and productive
Komatsu 875-2
The combination of power and flexibility makes the Komatsu 875 a truly versatile forwarder. It is just as effective in late thinning as in final felling.
- Choose between two load spaces. Further tailor your configuration with Flex Bunk or Load Flex options
- 130F crane in 8 / 10m reach - possibility to choose the powerful 145F or 165F crane as option
- Choose between options like tiltable crane pillar and XT transmission
Weight
20 590 kg
45,393 lb
Gross load
16 000 / 17 000 kg
Two load space options
Power
214 kW @ 1850 rpm
EU Stage V, Tier 4F, MAR-1
Max tractive effort
223 / 249 kN
50,132 / 55,977 lbf
Specifications
875-2
Overview
Dimensions
A. Width
With 710/45x26,5 tyres: 2 980 mm (9'9")
B. Length, total
10 380 mm (34") (with shortest rear frame)
C. Length, front axle to middle joint
1 900 mm (6'3")
D. Length, middle joint to rear axle
3 480 mm (11'5") (with shortest rear frame)
E Transport height with hoses and tyre compression
130F: 3 920 mm (12'10"), 130F with crane tilt: 3880 mm (12'9"), 145F: 3 930 mm (12'11")
F. Ground clearance, at steering joint
710 mm (2'4")
Note
Stated dimensions are nominal and may vary slightly depending on production tolerances and choice of equipment.
Weight
Approximate weight
8WD: 20 590 kg (45,393 lb)
Engine
General information
AGCO Power, 75FSTN-D5, 6-cylinder diesel engine with turbo and intercooler
Stroke volume
7.5 l (1.98 gal)
Power
214 kW @ 1850 rpm (EU Stage V, Tier 4F, MAR-1)
Torque
1 280 Nm @ 1 500 rpm
Fuel Tank
210 l (55.5 gal)
Bunk area
Gross load
16 000 / 17 000 kg (35,274 / 37,479 lb)
Bunk area
4,6 - 6,4 m² (48.4 - 68.9 sq.ft)
Crane and grapple
Crane
Komatsu 130F, Komatsu 145F, Komatsu 165F
Reach
130F: 8 m (26'3") / 10 m (32'10"), 145F: 8.5 m (27'11") / 10 m (32'10"), 165F: 7.5 m (24'7") / 8.5 m (27'11") / 10 m (32'10")
Gross lifting torque
130F: 127 kNm (93,670 lb-ft), 145F: 145 kNm (106,947 lb-ft), 165 kNm (121,698 lb-ft)
Gross slewing torque
130F: 28.7 kNm (21,168 lb-ft), 145F: 38 kNm (28,027 lb-ft), 165F: 43.4 kNm (32,010 lb-ft)
Rotator
G121/GT151/G181
Grapple
We offer a wide selection of grapples, please contact your sales representative for more information
Hydraulic system
Flow
370 l/min (97 gal/min) at 1 950 rpm
Electrical system
Voltage
24 V
Battery capacity
2 x 185 Ah
Generator
200 A
Transmission
Driving Speed
0 - approx. 25 km/h (0-15.5 mph)
Tranctive Force
223 / 249 kN (50,132 / 55,977 lbf)
Notes
General information
The specifications describe possible equipment, not which equipment is standard or optional. Standard and optional equipment varies between countries. Your sales representative has an up-to-date list of what is included. Weights are based on the equipment specified in the basic specification. Specifications and designs are subject to alteration without prior notice.
