Komatsu 855

Powerful yet compact

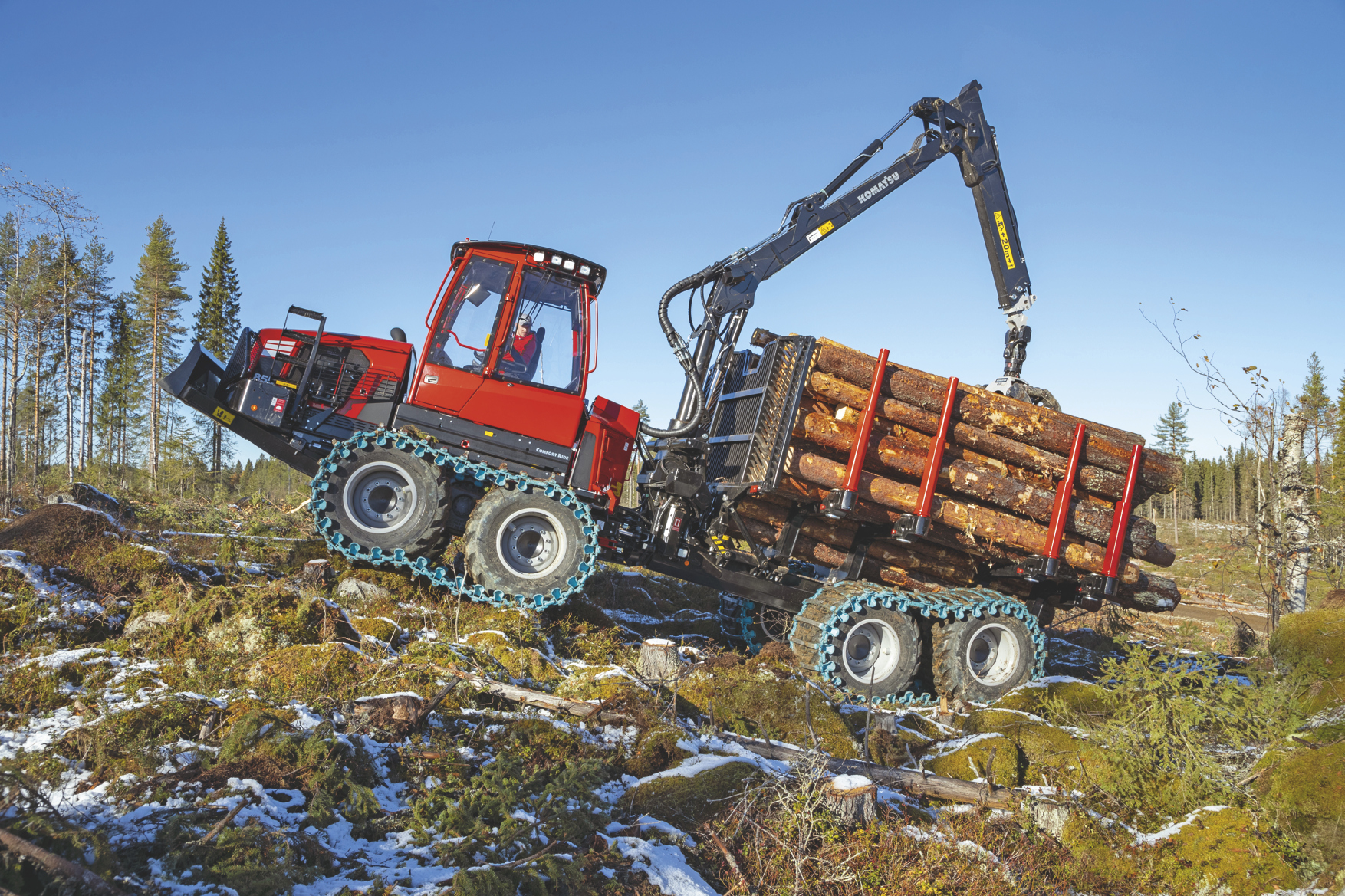

Komatsu 855

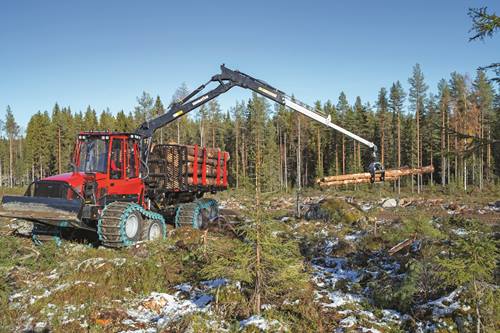

The Komatsu 855 makes it easy to deliver. With its power, nimbleness and smart solutions, the Komatsu 855 is a forwarder that offers you long-term productivity in all situations.

Features

New - Smart Crane as option!

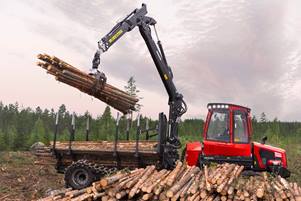

Now all our forwarders can be equipped with Smart Crane, with advantages such as simpler crane operation, less physical strain and higher productivity.

Click here for more information about Smart Crane

Smoother and faster transport

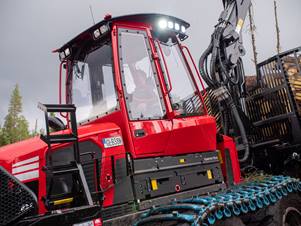

Komatsu Mini Steering Wheel means more space in the cab and a more comfortable driving experience. SpeedShift (Option) enables you to drive the machine at any speed between 0 and about 23 km/h without stopping to change gears – increasing productivity and saving fuel.

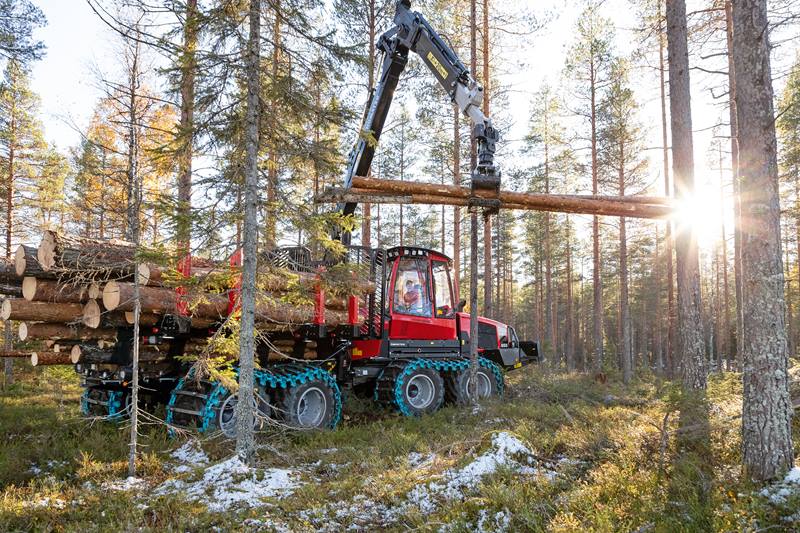

Efficient loading

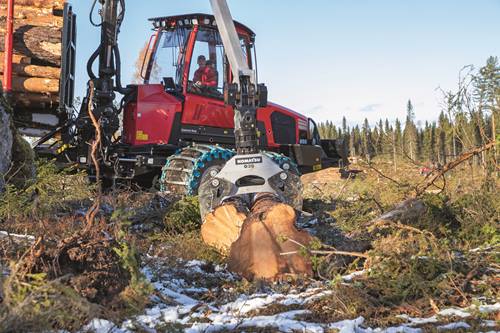

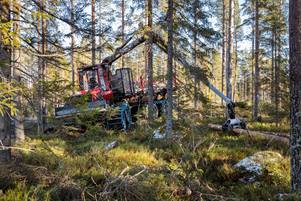

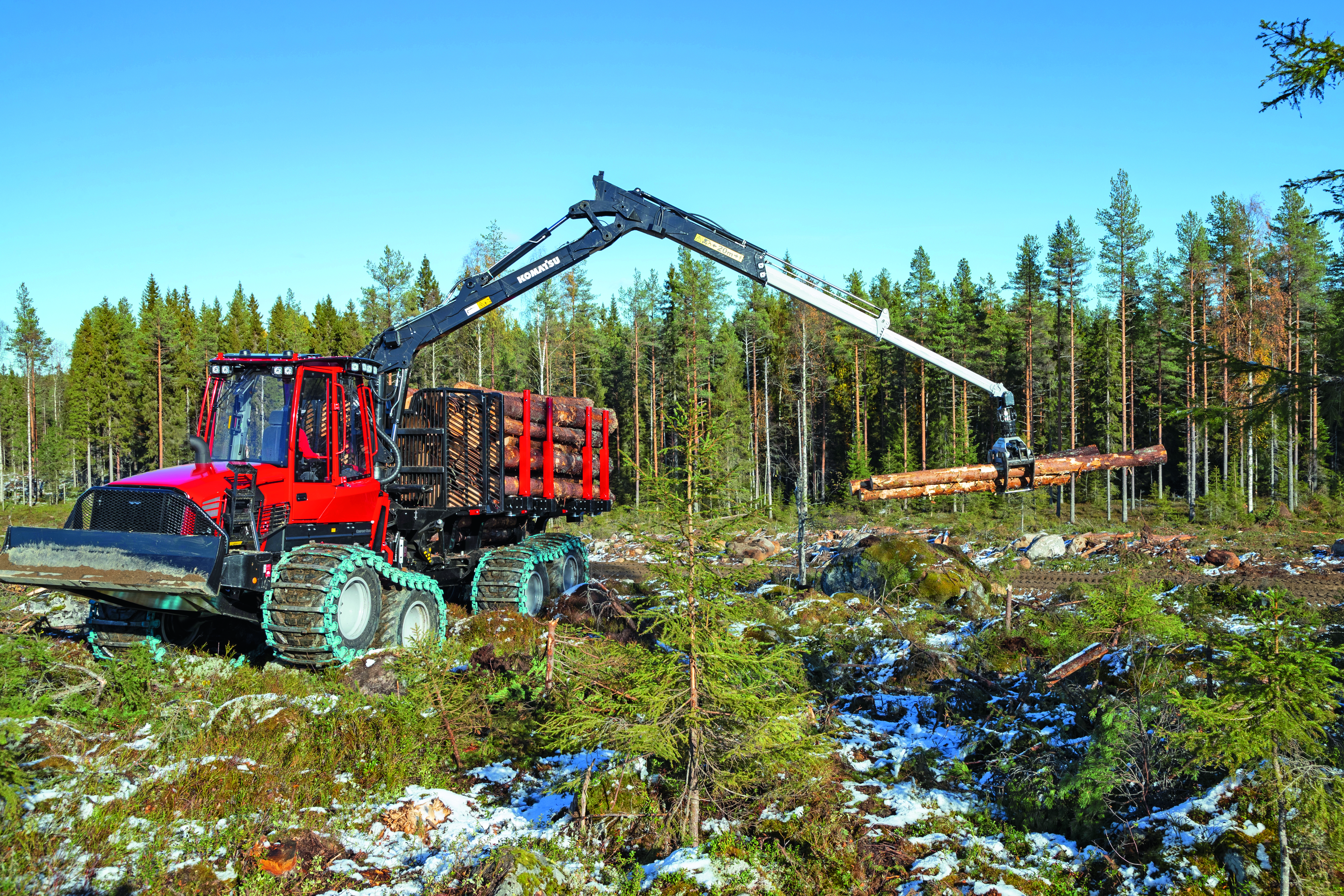

The crane has a long reach and a high net lifting force, a reliable pillar and hose routing solution and a Combi outer boom. Tiltable crane pillar (option) for efficient loading in steep terrain.

Flexible bunk with high load capacity

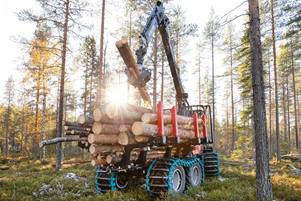

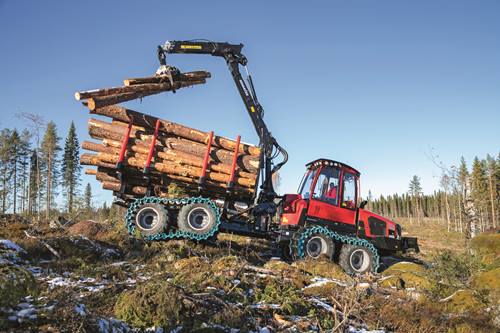

The Komatsu 855 has a large bunk characterised by its flexibility and many options. One is FlexGate, the gate that improves visibility and flexes out of the way if struck by the crane. This simplifies loading and minimises the risk of machine damage. Another is FlexBunk, which with its hydraulic height-adjustable stakes and option to widen the bunk provides a high load capacity.

Easy to maintain

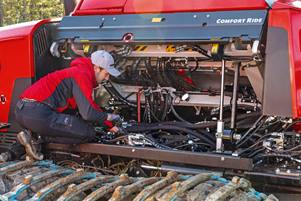

Service and maintenance are quickly and easily conducted. All daily service can be performed from ground level via easily accessible service hatches and the dipsticks are quickly and easily checked. The engine hood is electrically powered and the filters are strategically located together for easy access under the hood. The forwarder has many conveniently located service hatches.

Specifications

855

Overview

Technical dimensions of Komatsu 855
A. Width

With 600/55x26,5 tires: 2 730 mm

B. Length, total

130F: 10 080 mm, 145F: 10 260 mm (with shortest rear frame)

C. Length, front axle to middle joint

1 800 mm

D. Length, middle joint to rear axle

130F: 3 300 mm, 145F: 3 480 mm (with shortest rear frame)

E Transport height with hoses and tyre compression

130F: 3 920 mm, 130F with crane tilt: 3880 mm, 145F: 3 930 mm

F. Ground clearance, at steering joint

8WD: 710 mm

Note

Stated dimensions are nominal and may vary slightly depending on production tolerances and choice of equipment.

Approximate weight

6WD: 16,500 kg, 8 WD: 18,100 kg

General information

AGCO Power, 6-cylinder diesel engine with turbo and intercooler. EU Stage V.

Stroke volume

6.6 l

Power

170 kW DIN (228 HP) at 1,900 RPM.

Torque

950 Nm at 1,500 rpm

Fuel Tank

160 l

Gross load

14,000 kg (30,865 lb)

Bunk area

4,4 - 5,9 m2, depending on options and market

Crane

Komatsu 130F, Komatsu 145F

Reach

130F: 8 m / 10 m, 145F: 8.5 m / 10 m

Gross lifting torque

130F: 127 kNm, 145F: 145 kNm

Gross slewing torque

130F: 28,7 kNm, 145F: 38 kNm

Rotator

G121/GT151

Grapple

Komatsu G28

Flow

280 l/min (61,6 gal/min) at 2,000 RPM

Voltage

24 V

Battery capacity

2 x 180 Ah

Generator

2 x 100 A

Driving Speed

0-25 km/h

Tranctive Force

187 kN

General information

Standard and extra equipment are market-dependent and vary between countries. The specification describes possible equipment, not that which is standard or optional. Stated weights are based on standard equipment. Specifications and designs are subject to change without notice.
